Ultrasonic measurement

PC software

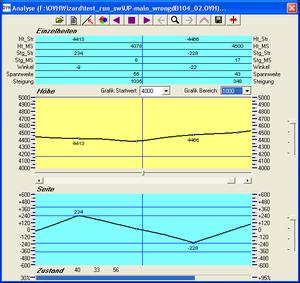

The software which runs on all Windows systems enables both measured data entry and online display and a comprehensive post processing after completion of the measurement in addition to creation of the measuring profiles for the vehicle setup.

The following standard evaluations are possible:

  • tolerance monitoring for side and height
  • display of overlaps
  • height of the contact wire
  • height of the support cable
  • stagger of the contact wire
  • stagger of the support cable
  • determination of the mast distance
  • determination of the gradient
  • detection of line events (signals, crossings, points etc.)
  • compensation of the vehicle position
  • table printout
  • video surveillance of the contact wire (optional)
